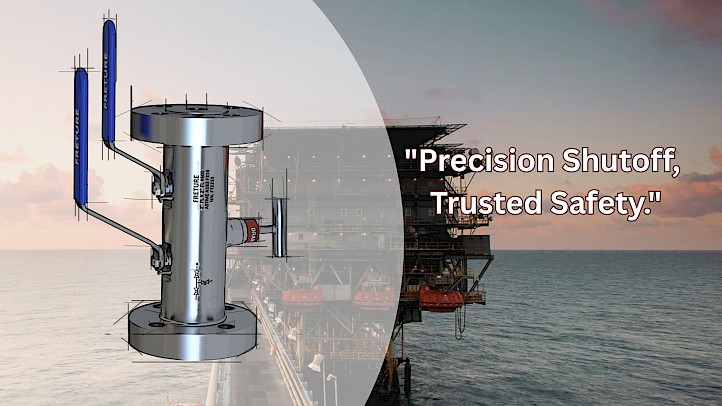

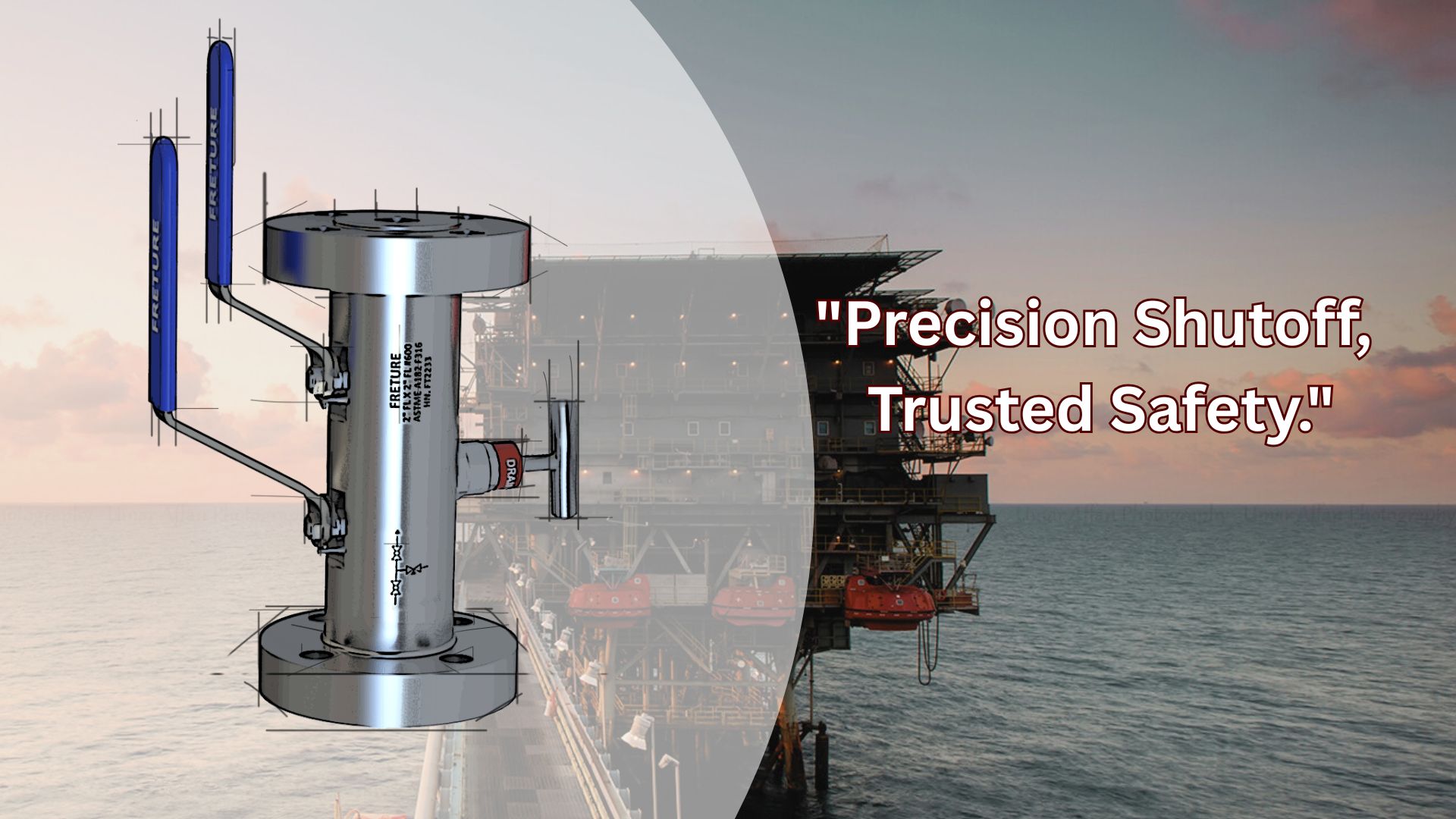

Understanding Double Block and Bleed Valves for Critical System Safety

Double Block and Bleed (DBB) valves are critical in industrial operations where safety, reliability, and maintenance efficiency are paramount. Designed to provide positive isolation and enhanced system integrity, these valves are indispensable in high-pressure and hazardous environments. Their dual-sealing mechanism ensures leak-proof performance, making them a trusted solution for critical applications.

In this blog, we delve deep into the working principle, applications, advantages, and design considerations for Double Block and Bleed Valves—crafted to serve as a technical yet accessible guide for engineers, maintenance professionals, and procurement heads.

What is a Double Block and Bleed Valve?

It is a valve assembly that combines two block valves and a bleed valve in a single unit. The primary function of this setup is to provide dual isolation (double block) and vent (bleed) any trapped pressure or fluid from the cavity between the two seals.

Unlike traditional isolation methods that involve installing two separate isolation valves and a bleed line, the DBB valve offers a compact, integrated solution that minimizes potential leakage paths, improves maintenance access, and reduces weight and installation costs.

Working Principle

The typical DBB valve features two seating surfaces—either both upstream and downstream—capable of sealing against pressure from both ends of the valve. Between these two isolation points, a smaller bleed valve is installed. Once both block valves are closed, the bleed valve can be opened to verify that the line is depressurized or to drain any trapped fluid. This setup ensures positive isolation, vital in hazardous or high-pressure systems.

Types and Designs of DBB Valves

Depending on the application and system design, DBB valves are available in several configurations:

• Ball Type DBB Valve: Best suited for full bore flow applications in oil and gas.

• Needle Type DBB Valve: Common in instrumentation and small bore pipeline systems.

• Plug Type DBB Valve: Used where tight shut-off and chemical resistance are critical.

Design options include:

• Integral DBB Valve: All components integrated into a single compact body, offering space and weight advantages.

• Flanged DBB Assembly: Consists of two separate valves and a bleed valve joined with flanged connections

Industrial Applications

1. Oil & Gas Industry

DBB valves are indispensable in upstream, midstream, and downstream oil and gas operations. They are used for:

• Pipeline isolation

• Pig launcher and receiver systems

• Gas metering skids

• Pressure transmitter protection

2. Chemical & Petrochemical Plants

In chemical processes, where fluid toxicity and volatility are concerns, DBB valves ensure safe isolation during maintenance and testing.

3. Power Generation

Used in turbine instrumentation systems and boiler pipelines where shutdowns must be efficient and leak-free.

4. Marine & Offshore Platforms

In offshore environments, weight and space constraints are critical. Compact DBB valves are used for:

• Subsea manifolds

• Safety isolation systems

5. Pharmaceutical and Food Processing

DBB valves support sterile processing environments by preventing contamination during line changeovers or system purging.

Key Advantages

• Enhanced Safety: Provides absolute isolation, preventing accidental fluid release during maintenance or inspection.

• Space & Weight Savings: Especially with integrated DBB valves, the system footprint is reduced.

• Reduced Leak Points: With fewer connections, the risk of leaks is minimized, which is crucial in hazardous environments.

• Improved Maintenance: Allows for system depressurization and draining without disassembling the pipeline.

• Regulatory Compliance: Helps meet international safety and environmental standards, such as API 6D and ISO 15848.

Compliance and Safety Standards

Reputable DBB valves are designed and tested to meet stringent industry norms such as:

• API 6D / 6A

• ASME B16.34

• ISO 5208 (leakage test)

• Fugitive Emissions Standards (ISO 15848, API 641)

These standards ensure the valve's performance under pressure, temperature, and chemical exposure.

Critical Considerations for Valve Selection

Choosing the right DBB valve involves several key factors:

• Operating Pressure and Temperature: Ensure compatibility with your process conditions.

• Material Selection: Stainless steel, carbon steel, Inconel, or Hastelloy—based on fluid characteristics and corrosiveness.

• End Connections: Flanged, threaded, or welded as per system design.

• Sealing Type: Soft seat for clean fluids, metal seat for abrasive or high-temperature media.

Additionally, consider automation capabilities and fail-safe configurations for critical applications.

Maintenance and Inspection Best Practices

• Seat Integrity Testing: Regular testing ensures no internal leakage.

• Periodic Bleed Operation: Keeps bleed paths clear of blockages.

• Visual Leak Detection: Some DBB valves are equipped with visual leak indicators.

• Documentation: Keep inspection and testing logs for audits and compliance.

Selecting a Reliable DBB Valve Manufacturer

Investing in a high-quality DBB valve from a reputed manufacturer ensures:

• Long operational life

• Conformance to global quality standards

• Engineering support and customization

• Certified testing (hydro, pneumatic, and fugitive emissions)

Double Block and Bleed Valves are more than just isolation tools—they are safety guardians in complex industrial operations. Whether you are in the oil and gas, chemical, or marine sector, integrating DBB valves ensures system integrity, operator safety, and environmental compliance.

If you're seeking dependable DBB valves tailored to your industrial needs, contact Freture Techno Pvt. Ltd.—a leading Double Block and Bleed Valve manufacturer in Mumbai, India, known for engineering excellence and reliable performance across the globe.

What is a Diaphragm Control Valve?

Diaphragm Control Valve are pivotal in many industrial processes, providing precise control over the flow of fluids and gases. Their unique design makes them suitable for a variety of applications, from chemical processing to water treatment. This blog explores the functionality, benefits, and applications of these control valves, highlighting why they are a preferred choice in many industries.

A Diaphragm Control Valve is a type of valve that uses a flexible diaphragm to regulate the flow of fluids. The Diaphragm, typically made of materials like rubber or elastomer, acts as a barrier between the valve’s internal components and the process fluid. This design allows the valve to control flow with high precision while minimizing leakage and wear.

Key Benefits

1. Precision Flow Control: These control valves are known for their accurate flow regulation. The flexible diaphragm allows for fine adjustments, making these valves ideal for applications where precise control is essential.

2. Leakage Prevention: The diaphragm design helps in preventing leaks by creating a tight seal. This is particularly important in industries dealing with corrosive or hazardous fluids, where leakage can lead to significant safety and environmental issues.

3. Durability and Maintenance: Diaphragm valves are built to withstand harsh conditions. Their design reduces the risk of clogging and minimizes maintenance needs. The replaceable diaphragm further extends the valve’s lifespan, making it a cost-effective solution for long-term operations.

Applications

These control valves are versatile and find applications across various industries:

• Chemical Processing: They are used to handle aggressive chemicals and maintain process integrity, providing a reliable solution for controlling corrosive fluids.

• Water Treatment: In water treatment plants, diaphragm valves regulate the flow of water and chemicals, ensuring efficient operation and consistent water quality.

• Pharmaceuticals: These valves play a crucial role in maintaining sterile environments and precise fluid control in pharmaceutical manufacturing.

These control valves are indispensable components in industrial applications where precision, reliability, and durability are crucial. Their unique design and benefits make them suitable for a wide range of processes, from chemical handling to water treatment. For high-quality Diaphragm Control valve that meet your industry needs, consider partnering with leading manufacturers known for their expertise and commitment to excellence.

The Pharma Pro&Pack 2024 Exhibition at Hyderabad HITEX was a remarkable event for Freture Techno Pvt. Ltd. as we proudly introduced SWJAL Process Pvt. Ltd., our new venture offering cutting-edge water treatment solutions for the pharmaceutical industry.

Our stall was abuzz with visitors eager to learn about the advanced technologies we are bringing to the market. From RO EDI systems to pure steam generation solutions, attendees got an in-depth look at how SWJAL Process aims to meet the stringent requirements of pharmaceutical manufacturing. The overwhelmingly positive feedback we received reaffirmed our commitment to innovation and excellence.

We’d like to extend our heartfelt gratitude to everyone who visited our stall and supported the launch of this exciting new chapter. The success of SWJAL Process is powered by our visionary leadership, including Mamta Chavan, Kailas Waghmare, and Laxmi Yadav, whose dedication is helping shape the future of pharmaceutical water treatment.

Stay tuned for more updates as we continue our journey toward delivering high-performance, tailored water treatment solutions.Click to watch full Intrerview Here

When it comes to fluid control systems, selecting the right valve is crucial for ensuring optimal performance and preventing leaks. Bellow seal valves have gained popularity for their ability to provide a reliable, zero-leakage solution. In this comprehensive guide, we will explore the key considerations and factors involved in choosing the perfect Bellow Seal Valve. Whether you're in the chemical, oil and gas, or pharmaceutical industry, this article will provide you with valuable insights to make an informed decision.

I. Understanding Bellow Seal Valves

Bellow Seal Valve are specially designed to provide a leak-proof solution by incorporating a flexible metal bellow. This innovative design ensures that no fluid or gas escapes through the valve stem, offering enhanced safety and efficiency in critical applications.

II. Factors to Consider When Choosing a Bellow Seal Valve

Operating Conditions:

Evaluate the operating parameters such as temperature, pressure, and media compatibility. Understanding the specific conditions under which the valve will operate is crucial in selecting the appropriate materials and construction.

Leakage Class:

Different industries have varying requirements for leakage tolerance. Classifying the desired leakage rate, such as ANSI Class IV or VI, will help in narrowing down the options and ensuring compliance with industry standards.

Material Selection:

Consider the compatibility of the valve materials with the fluid or gas being controlled. Factors such as chemical resistance, temperature limits, and corrosion properties should be carefully evaluated to ensure the longevity and reliability of the valve.

Bellow Seal Valve Size and Type:

The valve size should be chosen based on the required flow rate and system specifications. Additionally, there are various types of Bellow Seal Valves, including Bellow Seal Globe valves , Bellow Seal Gate valves, Bellow Seal Euro Chlor, and Bellow Seal Ext. Stem. Select the valve type that best suits your application requirements.

Actuation and Operation:

Decide whether manual, electric, pneumatic, or hydraulic actuation is most suitable for your system. Factors such as control precision, automation needs, and operational convenience should be taken into account.

III. Benefits of Bellow Seal Valves

Zero Leakage:

The primary advantage of bellow seal valves is their ability to provide a tight seal, ensuring zero leakage and preventing fugitive emissions. This is particularly important in industries that handle toxic, corrosive, or hazardous substances.

Reduced Maintenance:

Bellow Seal Valve require minimal maintenance due to their reliable sealing mechanism. This leads to cost savings and reduces downtime for repairs, contributing to improved operational efficiency.

Longevity and Durability:

These valves are designed to withstand harsh operating conditions, making them highly durable and resistant to wear and tear. Investing in high-quality Bellow Seal Valve ensures long-term performance and reliability.

IV. Application Examples

Chemical Industry:

Bellow Seal Valve find extensive use in chemical processing plants, where leak-free operation is critical to ensure the safety of personnel and protect the environment.

Oil and Gas Sector:

In the oil and gas industry, bellow seal valves play a vital role in preventing leakage of hydrocarbons and maintaining the integrity of pipelines, storage tanks, and processing units.

Pharmaceutical Manufacturing:

Bellow Seal Valve is ideal for pharmaceutical applications that require sterility and precision control. They prevent contamination and ensure the purity of the final product.

Conclusion

Choosing the right Bellow Seal Valve is essential for achieving optimal performance and maintaining a leak-free operation. By considering factors such as operating conditions, material compatibility, and valve type, you can make an informed decision that meets your specific requirements. Bellow Seal Valves provide a reliable and efficient solution, ensuring safety, compliance, and long-term operational success in various industries.

We are deeply saddened to report a devastating explosion that occurred at a Pemex facility today, sending shockwaves through the energy industry and the local community. As authorities work tirelessly to assess the extent of the damage and investigate the causes, many are left wondering what led to this catastrophic event.

Pemex, Mexico's state-owned oil and gas company, experienced a massive explosion at one of its facilities earlier today. The incident has resulted in significant damage to the facility, loss of life, and injuries to several individuals. Our hearts go out to all those affected by this tragedy, and we extend our deepest condolences to the victims and their families.

At this early stage, it is crucial to emphasize that the investigation into the Pemex explosion is still ongoing. Preliminary findings suggest that a combination of factors may have contributed to this incident. Here are some potential reasons being considered:

1️⃣ Equipment Failure: Industrial accidents can occur due to equipment malfunction or failure. It is possible that a critical piece of equipment, such as a pressure vessel or pipeline, malfunctioned or ruptured, leading to the explosion.

2️⃣ Human Error: Human error can never be entirely ruled out in complex industrial operations. Mistakes made during routine maintenance, handling hazardous materials, or following safety protocols could potentially have played a role in this tragedy.

3️⃣ Safety Measures: Safety measures and protocols are vital to prevent accidents in high-risk industries like oil and gas. Investigations will assess whether any lapses or deficiencies in safety protocols existed, potentially leading to the explosion.

4️⃣ Natural Causes: In some instances, natural causes like earthquakes or severe weather conditions can trigger explosions. Investigators will also consider whether external factors beyond human control contributed to the incident.

It is important to note that until the investigation is complete, we cannot definitively pinpoint the exact cause of the explosion. Experts, engineers, and authorities are working diligently to gather evidence, analyze data, and interview witnesses to determine the main reason behind this tragic event.

We urge the public to remain patient as the investigation progresses. Our priority must be to support the victims and their families during this challenging time. As more information becomes available, we will keep you informed, ensuring that the truth is shared transparently and responsibly.

Let us stand together in solidarity, providing comfort and assistance to those affected by this heartbreaking incident. Our thoughts and prayers go out to everyone impacted by the Pemex explosion.

Mr. Kailas Waghmare

Freture Techno Pvt Ltd – Director

When it comes to high-pressure fluid control, selecting the right valve is of utmost importance. Stainless steel Ball Valves are renowned for their strength, durability, and versatility in managing demanding industrial applications. In this blog post, we will explore the exceptional features and benefits of stainless steel Ball Valves offered by Freture Techno, a trusted supplier in the industry. Let's delve into why their valves excel in high-pressure environments.

Unparalleled Strength and Durability

Freture Techno's stainless steel Ball Valves are built to withstand the most rigorous conditions. Constructed with high-grade stainless steel materials, these valves offer exceptional strength, corrosion resistance, and wear resistance. They are specifically designed for high-pressure applications, ensuring long-lasting performance and reducing the need for frequent maintenance or replacement.

Optimal Sealing Performance

Sealing is a critical factor in valve selection, especially in high-pressure systems. Freture Techno's stainless steel Ball Valves excel in providing reliable and tight seals. The stainless steel ball, combined with precision machining and high-quality sealing components, ensures minimal leakage and optimal flow control. This feature guarantees safety and minimizes fluid loss, even in the most demanding operating conditions.

Smooth and Precise Flow Control

Freture Techno's stainless steel Ball Valves offer seamless flow control with their 90-degree turn operation. The handle or lever allows for quick and precise adjustment of flow, even under high-pressure circumstances. This smooth operation reduces energy loss and promotes system efficiency, ensuring optimal performance in high-pressure applications.

Versatility for Various Industries

Freture Techno's stainless steel Ball Valves find applications across a wide range of industries and systems. Whether it's oil and gas, chemical processing, water treatment, HVAC systems, or residential plumbing, these valves are highly versatile. Their ability to handle different fluids and pressures makes them a reliable choice for diverse sectors, providing consistent performance and adaptability.

Temperature Resistant and Reliable

In high-pressure applications, temperature fluctuations are often encountered. Freture Techno's stainless steel Ball Valves are engineered to withstand extreme temperatures without compromising performance or structural integrity. They can effectively handle both high and low temperatures, ensuring reliable fluid control in industries that experience varying temperature conditions.

For high-pressure fluid control, choosing the right valve is crucial to ensure safety and efficiency. Freture Techno's stainless steel Ball Valves offer unmatched strength, durability, exceptional sealing performance, smooth flow control, versatility, and temperature resistance. As a trusted supplier, Freture Techno provides reliable and efficient fluid control solutions for diverse industrial applications.

When selecting stainless steel Ball Valves from Freture Techno, consider the specific requirements of your system, such as pressure, temperature, and fluid compatibility. By opting for Freture Techno's stainless steel Ball Valves, you can trust in their superior quality and performance, providing long-lasting, reliable fluid control in high-pressure environments.

Mr. Kailas Waghmare

Freture Techno Pvt Ltd – Director

The Freture Bellowseal Valve – a sophisticated valve designed (MSS SP-117) to provide a reliable and hermetic seal, effectively preventing any potential leakage. Bellowseal Valve ensure “Emission Free Process” with its innovative bellows element (Witzenmann Germany – Hydra Bellow) , this valve offers exceptional sealing capabilities, ensuring process integrity and safeguarding against environmental contamination.

Types Of Bellowseal Valve

• Bellow seal Globe Valve
• Bellow seal Gate Valve
• Bellow seal Eurochlor Valve (GEST 06/318)

Bellowseal Valve Features

1. Superior Sealing: The bellows element guarantees a tight and secure gland seal, eliminating any possible leak paths and promoting safety.
2. Minimal Maintenance: Engineered with a bellows design that no friction and wear, these valves boast an extended lifespan and require minimal maintenance.
3. High-Temperature Resistance: Bellowseal valves are purpose-built to endure high temperatures and thermal cycling, making them ideal for demanding applications.
4. Corrosion Resistant: Constructed from top-quality materials, such as stainless steel, these valves exhibit remarkable resistance to corrosion, ensuring compatibility with a wide range of fluids.

Bellowseal Valve Application:

The versatility of Bellowseal valves makes them indispensable across various industries. Here are some common applications:

• Chemical and Petrochemical Industry: Bellowseal valves are utilized in processes involving aggressive chemicals, high-pressure systems, and hazardous materials.
• Pharmaceutical Industry: These valves find their place in pharmaceutical manufacturing, where they maintain a sterile environment, prevent contamination, and ensure product purity.
• Oil and Gas Industry: Bellowseal valves play a crucial role in controlling flow, preventing leakage, and maintaining safety in oil and gas production, refining, and transportation.
• Thermic Fluid / Hot Oil: Bellowseal Valves in thermic fluid applications is their exceptional thermal resistance allows them to operate reliably under extreme temperatures, ensuring consistent performance and minimizing the risk of valve failure. Their ability to regulate and control the flow of thermic fluids, such as heat transfer oils.
• Power Generation: These valves excel in power plants, effectively handling steam, gas, and other media at high temperatures and pressures.
• Food and Beverage Industry: Bellowseal valves are deployed to ensure hygiene and prevent contamination in various processes within the food and beverage sector.
• Water and Wastewater Treatment: These valves are instrumental in water treatment plants and wastewater management systems, regulating flow and preventing leakage. Bellow seal valves are widely used in industries and applications that require reliable sealing, corrosion resistance, high-temperature capabilities, and pressure containment. If you have any further inquiries or if we can provide any additional information, please do not hesitate to contact us.

Mr. Kailas Waghmare

Freture Techno Pvt Ltd – Director
